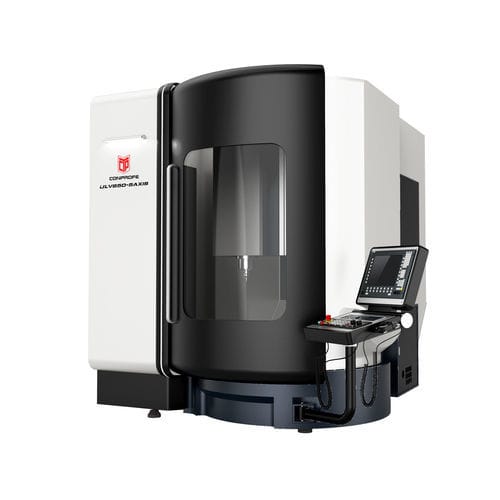

HIGHLIGHTS: ✅Ultrasonic spindle independently developed by Conprofe adopted to reduce cutting force, thus realizing high-efficiency machining for hard-machining material ✅Supercritical CO2 internal cooling system and MQL system available for clean machining ✅Full closed loop control enabled by High Precision Linear Encoder ✅Excellent X/Y/Z axis repeatability accuracy and A/C axis repeatability accuracy ✅SIEMENS 840Dsl adopted to realize 5-axis simultaneous machining with RTCP Function APPLICATION: Ideally suited for high-precision and high-efficiency 5-axis simultaneous ultrasonic or traditional machining of geometrically complicated workpieces of hard-brittle materials (ceramics, sapphire, glass, etc.), carbon fiber reinforced plastics and metal materials
Технические характеристики
CharacteristicsNumber of axes5-axisSpindle orientationverticalMachined materialfor plastics, for glass, for ceramics, quartz, for hard and brittle materialsSpindle mountHSK A-63Number of tool stations24 toolsOther characteristicshigh-performance, high-precision, ultrasonicX travel
650 mm (26 in)
Y travel
620 mm (24 in)
Z travel
500 mm (20 in)
Rotational speed
20,000 rpm (125,664 rad.min-1)
Workpiece max height
650 mm (26 in)
Table rotation (C axis)
360 °
Work feed X-axis
30,000 mm/min (20 in/s)
Work feed Y-axis
30,000 mm/min (20 in/s)
Work feed Z-axis
30,000 mm/min (20 in/s)
Table load capacity
400 kg (882 lb)
Tool weight (max)
6 kg (13.2 lb)
Positioning accuracy
0.006 mm (0 in)
Repeatability
0.005 mm (0 in)
Weight
11,000 kg (24,250.85 lb)
Overall length
2,478 mm (97.6 in)
Overall width
3,600 mm (141.7 in)
Overall height
3,050 mm (120.1 in)
