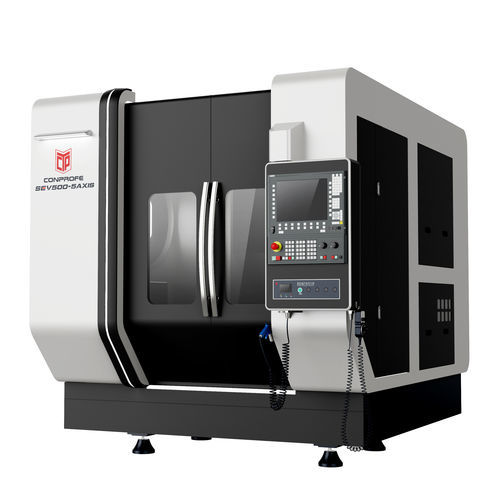

HIGHLIGHTS: ✅Ultrasonic spindle independently developed by Conprofe adopted to reduce cutting force, thus realizing high-efficiency machining for hard-machining material ✅Supercritical CO2 internal cooling system and MQL system available for clean machining ✅Full closed loop control enabled by High Precision Linear Encoder ✅Excellent X/Y/Z axis repeatability accuracy and A/C axis repeatability accuracy ✅SIEMENS 840Dsl adopted to realize 5-axis simultaneous machining with RTCP Function APPLICATION: Ideally suited for high-precision and high-efficiency 5-axis simultaneous ultrasonic or traditional machining of geometrically complicated workpieces of hard-brittle materials (ceramics, sapphire, glass, etc.), carbon fiber reinforced plastics and metal materials
Технические характеристики
CharacteristicsNumber of axes5-axisSpindle orientationverticalMachined materialfor aluminum, for composites, for glass, for ceramics, quartz, for hard and brittle materialsSpindle mountHSK A-63Number of tool stations24 toolsApplicationsfor automatic tool changers, cutting, for vehicles, drilling, for the automobile industry, for the aeronautical industry, for medical applications, for drilling, for aluminum plates, for small parts production, for aluminum profiles, for aeronautics, for titanium, for profilesOther characteristicshigh-speed, high-performance, high-precision, ultrasonicX travel
520 mm (20 in)
Y travel
520 mm (20 in)
Z travel
460 mm (18 in)
Rotational speed
20,000 rpm (125,664 rad.min-1)
Workpiece max height
520 mm (20 in)
Table rotation (C axis)
360 °
Work feed X-axis
30,000 mm/min (20 in/s)
Work feed Y-axis
30,000 mm/min (20 in/s)
Work feed Z-axis
30,000 mm/min (20 in/s)
Table load capacity
300 kg (661 lb)
Tool weight (max)
6 kg (13.2 lb)
Positioning accuracy
0.006 mm (0 in)
Repeatability
0.005 mm (0 in)
Weight
10,000 kg (22,046.23 lb)
Overall length
2,220 mm (87.4 in)
Overall width
3,217 mm (126.7 in)
Overall height
2,800 mm (110.2 in)
