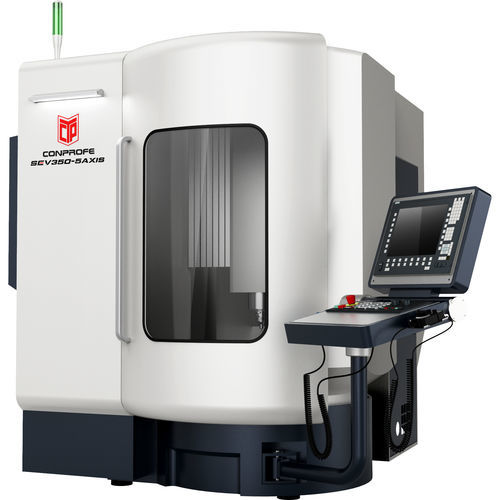

HIGHLIGHTS: ✅Ultrasonic spindle independently developed by Conprofe adopted to reduce cutting force, thus realizing high-efficiency machining for hard-machining material ✅Supercritical CO2 internal cooling system and MQL system available for clean machining ✅Full closed loop control enabled by High Precision Linear Encoder ✅Excellent X/Y/Z axis repeatability accuracy and A/C axis repeatability accuracy ✅SIEMENS 840Dsl adopted to realize 5-axis simultaneous machining with RTCP Function APPLICATION: Ideally suited for high-precision and high-efficiency 5-axis simultaneous ultrasonic or traditional machining of geometrically complicated workpieces of hard-brittle materials (ceramics, sapphire, glass, etc.), carbon fiber reinforced plastics and metal materials
Технические характеристики
CharacteristicsNumber of axes5-axisSpindle orientationverticalMachined materialfor composites, for glass, for ceramics, quartz, for hard and brittle materialsSpindle mountHSK A-63Number of tool stations15 toolsApplicationscutting, drilling, for the automobile industry, for the aeronautical industry, for automatic tool changers, for medical applications, for small parts production, for aeronauticsOther characteristicshigh-performance, compact, high-productivity, high-precision, ultrasonicX travel
380 mm (15 in)
Y travel
420 mm (17 in)
Z travel
365 mm (14 in)
Rotational speed
24,000 rpm (150,796 rad.min-1)
Workpiece max height
350 mm (14 in)
Table rotation (C axis)
360 °
Work feed X-axis
30,000 mm/min (20 in/s)
Work feed Y-axis
30,000 mm/min (20 in/s)
Work feed Z-axis
30,000 mm/min (20 in/s)
Table load capacity
100 kg (220 lb)
Tool weight (max)
4 kg (8.8 lb)
Positioning accuracy
0.006 mm (0 in)
Repeatability
0.005 mm (0 in)
Weight
6,000 kg (13,227.74 lb)
Overall length
1,900 mm (74.8 in)
Overall width
2,940 mm (115.7 in)
Overall height
2,350 mm (92.5 in)
