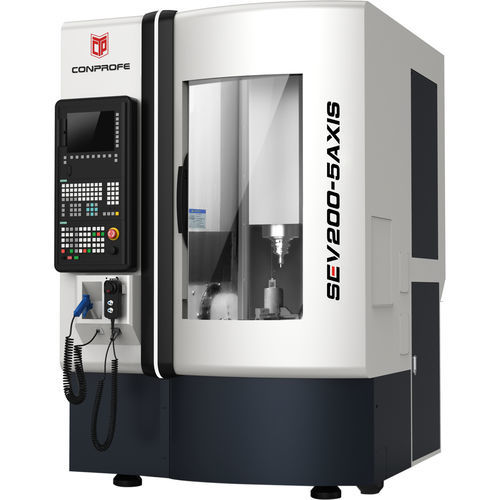

HIGHLIGHTS: ✅Ultrasonic spindle independently developed by Conprofe adopted to reduce cutting force, thus realizing high-efficiency machining for hard-machining material ✅Supercritical CO2 internal cooling system and MQL system available for clean machining ✅Full closed loop control enabled by High Precision Linear Encoder ✅Excellent X/Y/Z axis repeatability accuracy and A/C axis repeatability accuracy ✅SIEMENS 840Dsl adopted to realize 5-axis simultaneous machining with RTCP Function APPLICATION: Ideally suited for high-precision and high-efficiency 5-axis simultaneous ultrasonic or traditional machining of geometrically complicated workpieces of hard-brittle materials (ceramics, sapphire, glass, etc.), carbon fiber reinforced plastics and metal materials
Технические характеристики
CharacteristicsNumber of axes5-axisSpindle orientationverticalMachined materialfor aluminum, for composites, for plastics, for glass, for ceramics, for hard and brittle materialsSpindle mountHSK-E40, HSK-E32Number of tool stations16 tools, 22 toolsOther characteristicsultrasonicX travel
250 mm (10 in)
Y travel
250 mm (10 in)
Z travel
250 mm (10 in)
Rotational speed
30,000 rpm, 36,000 rpm (188,496 rad.min-1)
Workpiece max height
200 mm (8 in)
Table rotation (C axis)
360 °
Work feed Y-axis
30,000 mm/min (20 in/s)
Work feed Z-axis
30,000 mm/min (20 in/s)
Table load capacity
30 kg (66 lb)
Tool weight (max)
1 kg (2.2 lb)
Positioning accuracy
0.006 mm (0 in)
Repeatability
0.005 mm (0 in)
Weight
1,900 kg (4,188.78 lb)
Overall length
1,285 mm (50.6 in)
Overall width
1,795 mm (70.7 in)
Overall height
2,030 mm (79.9 in)
