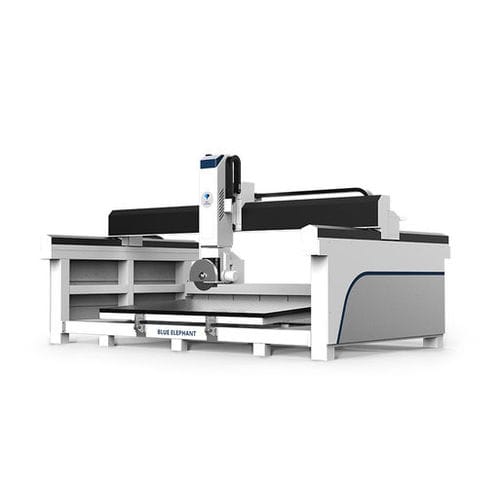

This stone CNC machining center can cut quartz, marble, granite, and rock slabs with a powerful saw blade. It combines a saw blade and CNC router tools to achieve multiple advanced functions. For example, cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, edge tracking, and other powerful functions. The 5 axis bridge saw is widely used in the stone processing plants, kitchen countertop processing, background wall profiling, and other fields. 1. It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation. 2. This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head. 3. It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs. 4. The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process. 5. This bridge saw is ideal for cutting slabs of quartz, marble, granite and stone.
Технические характеристики
CharacteristicsNumber of axes5-axisSpindle orientationverticalStructurebridgeMachined materialquartz, for marble, for graniteOther characteristicshigh-precision, chamferingX travel
3,200 mm (126 in)
Y travel
2,000 mm (79 in)
Z travel
40 mm (2 in)
Rotational speed
3,000 rpm (18,850 rad.min-1)
Power
11 kW (14.96 hp)
Work feed X-axis
30,000 mm/min (20 in/s)
Work feed Y-axis
30,000 mm/min (20 in/s)
Work feed Z-axis
15,000 mm/min (10 in/s)
Table load capacity
800 kg (1,764 lb)
Weight
5.5 t (6.06 us ton)
Overall length
5.9 m (1904)
Overall width
4.5 m (1409)
Overall height
3.3 m (1009)
