Additional Features:
- Frequency range: 20 Hz-500 kHz
- Parameters Z Ø Rac C D L Q X B G Y and Rdc (Option)
- 0.1% basic accuracy
- Drive level from 10mV to 2Vrms
- Internal and external DC Voltage bias
- GPIB (IEEE-488.2), RS-232, USB, and LAN interface
- LCD Display, with easy-to-read characters
- +2V internal / ±40 VDC external bias
- Protection against charged capacitors
- Small size and light weight
- Includes: User Manual, Kelvin Clips, AC Power Cable

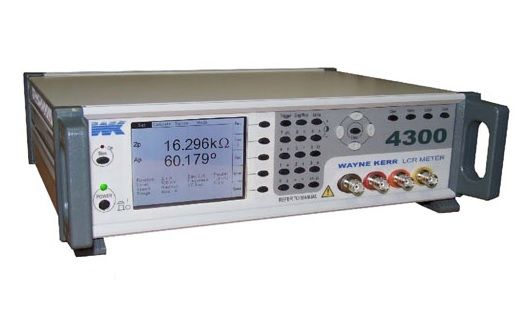

Accurate and fast measurements may be made from 20 Hz to 500 kHz making the 4350 the ideal choice for many applications in the test or production environments. The 4350 may be externally controlled using the standard RS232, GPIB, USB, or LAN interfaces. LAN interface allows users to perform tests over the Internet.
Технические характеристики
| Manufacturer | Wayne Kerr |
|---|---|
| Condition | New |
| Frequency | 500 kHz |
