Product Information

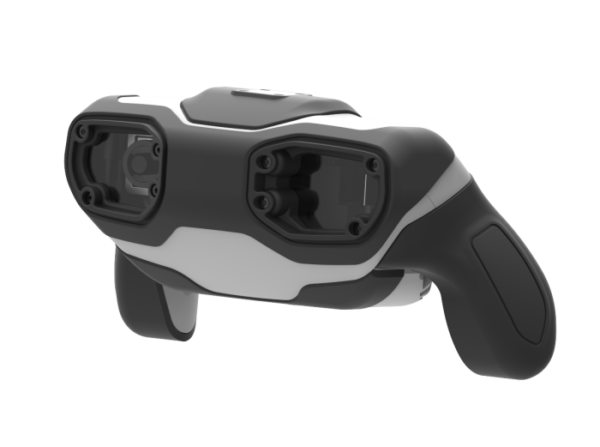

Keep your infrastructure safe. The 3DSL Rhino was developed with field inspection in mind. In addition to the imaging hardware and analysis software, field accessories are available to facilitate all damage assessment work and ensure correct measurements every time. Industry leading accuracy, precision, and resolution result in the highest quality measurements.
Product Benefits
The rugged Rhino
- Can operate in windy deserts
- In rain and snow
- Can be dropped
- Integrates with 3DSL robots
- Produces standard 3D data sets that can be exported to a variety of software packages
- Maintains +/- 2 mils (0.050 mm) accuracy
3D images can be analyzed using the 3DSL NDT software suite, included with each Rhino, to determine the maximum safe operating pressure and burst pressure using RSTRENG, ASME B31G and modified AMSE B31G. Dent analysis is compliant with ASME B31.8 and B31.4. The option API 579 modules produce API compliant reports for a variety of chemical and petro-chemical plant infrastructure.
Applications
- Midstream transmission pipeline damage assessment
- ASME B31G, modified ASME B31G, RSTRENG
- ASME B31.8, ASME B31.4
- Export for finite element analysis (FEA)
- Chemical and Petro-chemical plant inspection
- API 579 compliant
- Aircraft inspection
- SRM compliant analysis
- Bridge inspection
- Metal loss on bolts and gusset plates
- Strain and deformation of gusset plates
- Weld inspection
Technical Specifications
Specification Type Specification Data Interface IEEE 802.3 1000baseT Sensor resolution 659 x 493 Sensor Sony ICX424 Sensor type CCD Progressive Sensor size Type 1/3 Cell size 7.4 µm 3D acquisition rate <, 90ms Max frame rate at full resolution 120 fps A/D 14 bit On-board FIFO 16 MB 3D Measurements System 420 200 Working distance 360mm (minimum) 180mm (minimum) 14” (minimum) 7” (minimum) Measurement volume 200mm X 150mm X 300mm 100mm X 75mm X 200mm 8” X 6” X 12” 4” X 3” X 8” Resolution (lateral) 0.4mm / 16mils 0.2mm / 8mils Resolution (depth) 0.05mm / 2mills 0.05mm / 2mils Operating conditions/Dimensions Operating temperature -10°C +40°C 14°F +104°F Power requirements (DC) 12 VDC, AC/DC adapter included, system may also be powered using a battery Power consumption (12 V) 10 W Mass 2.4 kg / 5.3lbs Dimensions 220mm X 120mm X 80mm (L x W x H in mm) 8.7” X 4.7” X 3.2” Regulations RoHS, Class A, IP67, meets one meter (3.3 feet) drop test requirements onto concrete
