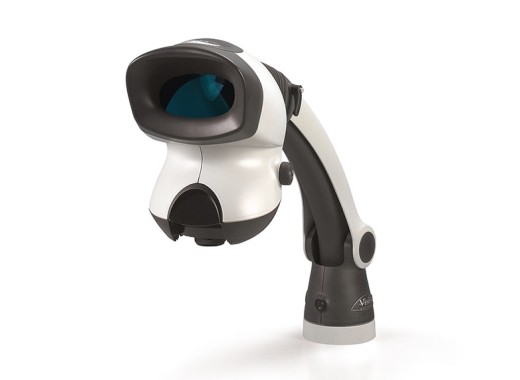

The Vision Mantis Compact 3D microscope features eyepiece-less optics that does not require the user to watch into the eyepiece but allows for viewing from distance. This is ideal for user with glasses and also lowers the strain on the eyes and allows for freedom of movement. Viewing the object from the distance will also allow more light to shine on the object and results in a more natural view. The freedom of movement also provides easier handling of the object as you will have a better peripheral view from a distance compared to looking into eyepieces of a traditional microscope. Additional lighting is also included in the form of 20 long life LEDs. The Vision Mantis Compact supports magnifcation of 2x to 8x. However, these lenses are not included and we recommend to purchase one of these lenses as well as the standalone 3D microscope does not include any magnification.
For other accessories you can contact us, price on request
Optional accessories 2x lens 2x lens for 2x magnification, a working distance of 167 mm and a field of view of 45 mm. 2x lens 263.35 €263.35 Excl. VAT Info Add to Cart 4x lens 4x lens for 4x magnification, a working distance of 96 mm and a field of view of 27.5 mm. 4x lens 110.5 €110.50 Excl. VAT Info Add to Cart 6x lens 6x lens for 6x magnification, a working distance of 73 mm and a field of view of 19.2 mm. 6x lens 172.47 €172.47 Excl. VAT Info Add to Cart 8x lens 8x lens for 8x magnification, a working distance of 58.5 mm and a field of view of 14.3 mm. 8x lens 440.99 €440.99 Excl. VAT Info Add to Cart Specifications of the microscope Lighting type20 LEDs Lighting intensity9400 LUX Lighting durabilityUp to 10000 hours Weight5.4 kg
The following article in the knowledge base explains the principles of the microscope for electronics inspection: The microscope: an introduction
Accessories
The Vision Mantis Compact 3D microscope includes:
- Power cord
