37XR-A Амперзондовый мультиметр

Features

• Backlight, True-rms with component and logic test
• Inductance to 40 H, frequency to 40 MHz, capacitance to 400 μF, logic to 20 MHz
• Input warning tone when test leads are in wrong jack
• 10 Amps AC/DC, fully safety fused
• Continuity beeper
• Min/max, average, relative, peak, and data hold
• Auto power off to save battery life
• Separate door for easy battery and fuse access
• Magne-Grip™ Holster with magnetic hanging strap
• Autoranging, display: 4-3/4 digit LCD, 10,000 counts with 41-segment analog bar graph
• Display Update Rate: 2/sec, nominal
• Power Battery: 9 V NEDA 1604, JIS 006P, IEC 6F22
• Operating temperature: 0 °C to 45 °C at &lt, 70 % R.H

Accessories (Included)

• 37XR-A
• Test leads with threaded alligator clips
• 9 V battery (installed)
• Magne-Grip™ Holster with magnetic hanging strap
• Spare fuse

Specifications

• DC Voltage: 1.000 mV, 10.00 V, 100.0 V, 1000 V
• AC Voltage: 1.000 mV, 10.00 V, 100.0 V, 1000 V
• DC Current: 100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
• AC Current: 100.0 µA, 1.000 µA, 10.00 mA, 100.0 mA, 400.0 mA, 10.00 A
• Resistance: 1000.0 O, 10.000 kO, 100.00 kO, 1000.0 kO, 10.00 MO , 40.00 MO
• Continuity: Yes
• Diode: Yes
• Capacitance: 40.00 nF. 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF
• Frequency: 100.00 Hz, 1.0000 kHz, 10.000 kHz, 100.00 kHz, 1.0000 MHz, 10.000 MHz
• Duty cycle: 0.00 % → 90.0 %
• Logic test: Yes
• Inductance: 40 H
• dBm: -13 dBm → + 50 dBm

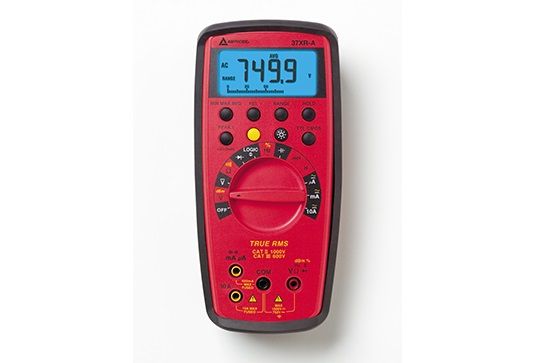

The 37XR-A is a Handheld, 1 kV, 4.75 Digit, 1 kV multimeter from Amprobe. The Amprobe 37XR-A Digital Multimeter offers True-rms measurement along with component and logic testing for troubleshooting electronics at the bench or on the job site.
