Features:
- 40/80 Channel Reed Multiplexer for 34980A
- 40 2-wire channels or 80 1-wire channels
- Mixed 2- or 4-wire configurations
- High-speed reed relays, with relay counter
- 500 ch/s scanning
- +/-150V peak, 0.5A switch, 1.5A carry current

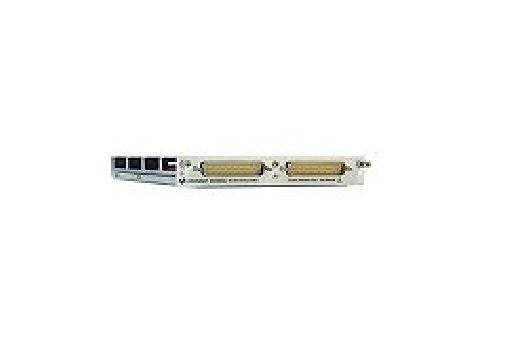

The Agilent 34923A module for the Agilent HP 34980A Multifunction Switch/Measure Unit is a high speed-multiplexer for general purpose scanning. It uses reed relays to achieve scan rates up to 500 channels-per-second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks. Current measurements can be accomplished with user supplied shunts. Standard 50-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions. 2- and 4-wire channels may be mixed on the same module, or configure as an 80 1-wire multiplexer.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
