| Kit of 10 SMB-to-BNC adapter cables, 50? |
| Adapter cables, 50? |
| Adapter cables, 50? |
Additional Features:
- Dual 4-Channel RF Multiplexer
- 2 GHz bandwidth, 50 Ohm
- BNC to SMB adapter cables included

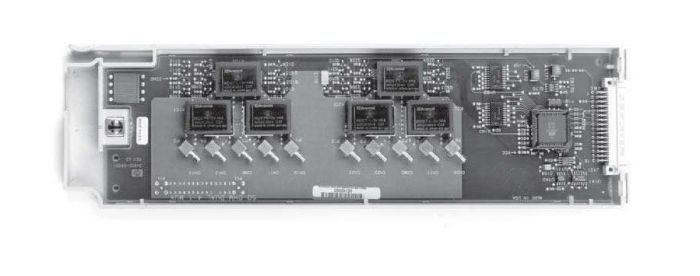

The Agilent 34905A offers broadband switching capabilities for high-frequency and pulsed signals. Use it to route test signals between your device under test and your signal generator, oscilloscope, spectrum analyzer, or other instrumentation.
The RF multiplexers are arranged as two independent 1 x 4 multiplexers, each with a common shield and a switched center conductor. Connections can be made directly to SMB inputs with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1 GHz bandwidth. Multiple banks may be cascaded together for applications requiring even larger topologies-create a stubless 16:1 multiplexer in a single frame.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
