3130 Associated Research HiPot

3130 — это Hipot от Associated Research. Hipot, или высокий потенциал, представляет собой класс электронного испытательного оборудования, используемого для проверки электрической изоляции. Инженеры используют инструменты для высоковольтных испытаний кабелей, проводов, печатных плат, приборов, электродвигателей и трансформаторов. По мере старения изделия его изоляция может разрушиться, что приведет к утечке тока. Тестеры Hipot защищают инженеров от утечек тока, обнаруживая разрывы и дефекты в электронном устройстве.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Артикул: 3130 Associated Research HiPot TME арт.: 3130 Associated Research HiPot

Другое оборудование

Additional Features:

30 Amp Ground Bond Tester
Patented VERI-CHEK® feature prompts users through steps to validate the instrument»s operation
Graphic LCD provides intuitive menu system to simplify the entire testing process from set-up to results
Patented CAL-ALERT® feature alerts the operator that the tester is due for re-calibration
PLC Remote Control allows operators to remotely control the Ground Bond tester
10 Memories with 3 Steps per memory for storing and recalling test parameters
Interconnects with an Associated Research Hipot tester to form a complete test system
4 wire measurement and milliohm offset for accurate Ground Bond test results
Electronic Dwell timer for more consistent and reliable testing

Input Specifications

Voltage: 115/230 VAC ± 10%, user selectable
Frequency: 50/60 Hz ± 5%
Fuse: 6.3 A, slo-blow 250 VAC

Ground Bond Test Mode

Output Rating

Current 3130: 1.00 — 30.00 A AC
Voltage 3130: 6 V AC, fixed

Output Frequency

Range: 50 / 60 HZ, User Selectable

Dwell Time Setting

Range: 0 and 0.5 — 999.9 secs, 0 for continuous running
Resolution: 0.1 sec
Accuracy: ± (0.1% of setting + 0.05 secs)

Maximum & Minimum Limits

0 — 120 mΩ for 1 — 30.00 A
0 — 510 mΩ for 1 — 10.00 A
Accuracy 3130: ± (2% of setting + 2 mΩ)

Offset Capability

Range: 0 — 100 mΩ
Resolution: 1 mΩ
Accuracy: ± (2% of setting + 2 mΩ)

Current Display

Range: 0.00 — 30.00 A
Resolution: 0.01 A / step
Accuracy: ± (2% of reading + 0.02 A)

Ohmmeter Display

Range: 0 — 510 mΩ
Resolution: 1 mΩ / step
Accuracy: ± (2% of reading + 0.02 A)

Timer Display

Range: 0.0 — 999.9 secs
Resolution: 0.1 secs
Accuracy: ± (0.1% of reading + 0.05 secs)

General Specifications

Remote Control & Signal Output

The following input and output signals are provided through two 9 pin D type connectors:

Remote control: Test, Reset, Interlock, and Withstand Processing
Remote recall of memory program #1, #2, and #3
Outputs: Pass, Fail, Test-in-process, Start Out and Reset Out

Program Memory: 10 Memories, 3 steps per memory.
Security: Key Lock capability to avoid unauthorized access to all test parameters and memory locations.
Mechanical: Bench or rack mount with tilt up feet.
Dimensions: (W x H x D) 8.5 x 4.0 x 15.5 in., (216 x 103 x 390 mm) includes feet

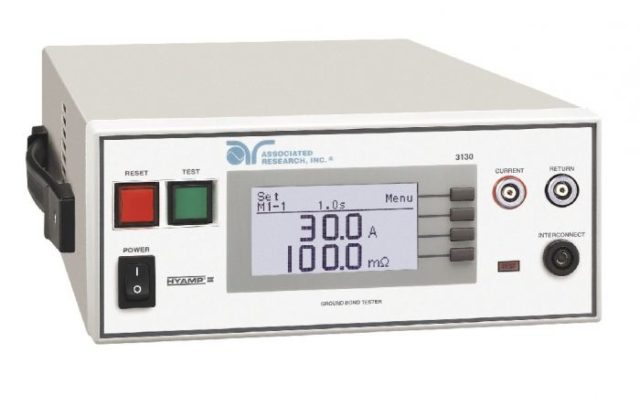

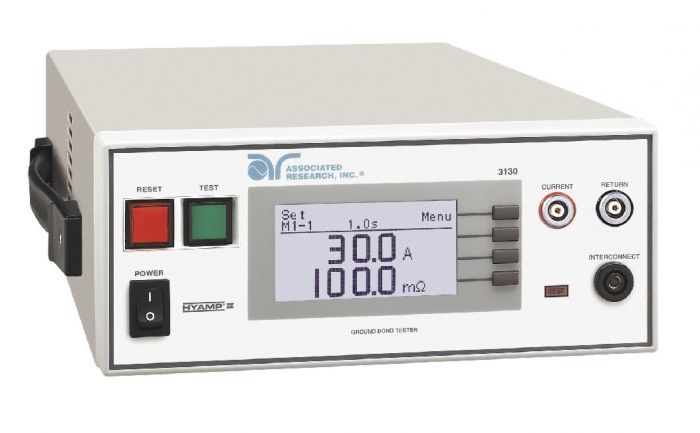

The Associated Research 3130 is a manual Ground Bond tester that features an enhanced graphic LCD. The 3130 provides 30 Amps of Ground Bond test current. The 3130 can be used stand alone or interconnected to the Hypot® III family of Hipot testers to form a complete test system.

Технические характеристики

Manufacturer	Associated Research
Condition	Used
