Additional Features:
- BNC Female to Multi-Stacking Banana Plug
- Converts BNC cables with male plugs to stackable banana plugs for versatility
- BNC connector and banana plugs are molded directly to the wire for pull strength durability and dust and moisture resistance
- BNC center contact is gold plated Beryllium Copper for corrosion resistance, low contact resistance and long insertion life
Materials:
- BNC: Nickel plated brass
- Center Contact: Gold plated Beryllium Copper
- Wire: 18 AWG, PVC
- Marking: “Pomona 3073”
- Banana Plugs: Nickel plated brass
- Spring: Nickel plated Beryllium Copper
- Insulation: Polypropylene, red and black
Ratings:
- Operating Voltage: Hand-held testing: 30VAC/60VDC Max.
- Hands free testing in controlled voltage environments: 500 WVDC Max.
- Operating Temperature: +55°C (+131°F) Max.

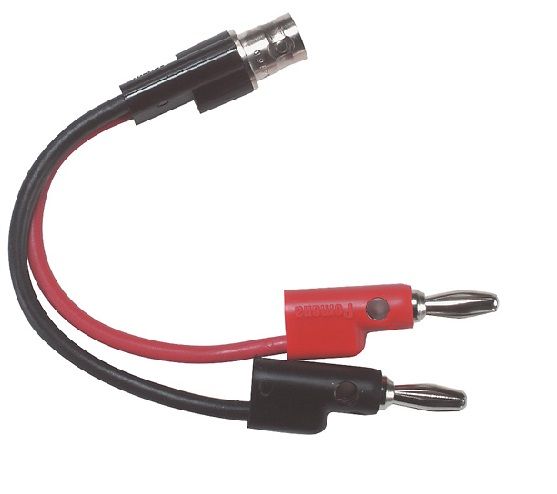

The Pomona 3073 is a BNC Female to Multi-Stacking Banana Plugs that converts BNC cables with male plugs to stackable banana plugs for versatility.
Технические характеристики
| Manufacturer | Pomona |
|---|---|
| Condition | New |
