Additional Features:
- Dual 0-30V @0-3 Amps Digital 4 LED Display
- Power: 180 W
- Display: LED, Dual 3 Digit
- Noise free output for servicing RF equipment
- Energy saver design allows cooler operation at all output levels for better stability and operating life
- Excellent line and load regulation characteristics
- Fully isolated outputs for series or parallel operation
- Coarse and Fine voltage controls
- Each output has two 3 digit LED read-outs for monitoring voltage and current
- Front Panel LEDs indicate constant voltage or constant current operation and overload condition
Specifications
Outputs 1 and 2
- Volts: 0 to ±30V DC
- Amps: 0 to ±3 Amps
Constant Voltage Mode
- Line and Load Regulation: 0.02% + 2mV
- Ripple and Noise: <, 1 mV RMS
Constant Current Mode
- Load Regulation: # 0.05% + 5mA
- Line Regulation: # 0.05% + 0.25mA
- Ripple and Noise: # 2mA RMS
Digital Display Resolution
- Volts: 100mVCurrent: 10mA
- Accuracy: ± (0.5% + 3 D)
General Specifications
- Operating Temperature: 0 to 35°C
- AC Input Volts: 120V/220V
- Power Consumption: 300VA, 50/60Hz
- Size: 6.3″ H × 5″ W × 13″ D

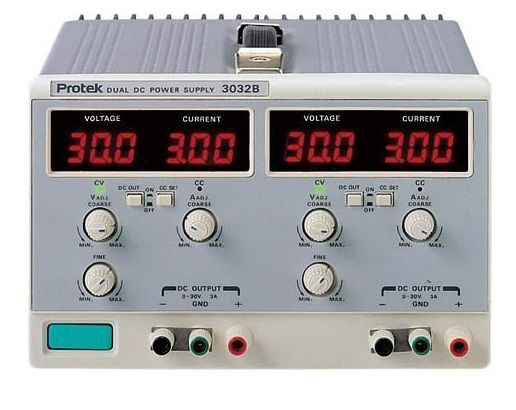

The Protek 3032B is a Dual Output 30 V, 3 A, 180 W, DC Power Supply with an LCD Digital Display. The Protek 3032B has a noise free output for servicing RF equipment, and fully isolated outputs for series or parallel operation.
The Protek 3032B»s energy saver design allows cooler operation at all output levels for better stability and operating life, as well as excellent line and load regulation characteristics.
Технические характеристики
| Manufacturer | Protek |
|---|---|
| Condition | Used |
| Current | 3 A |
| Voltage | 30 V |
| Power | 180 W |
