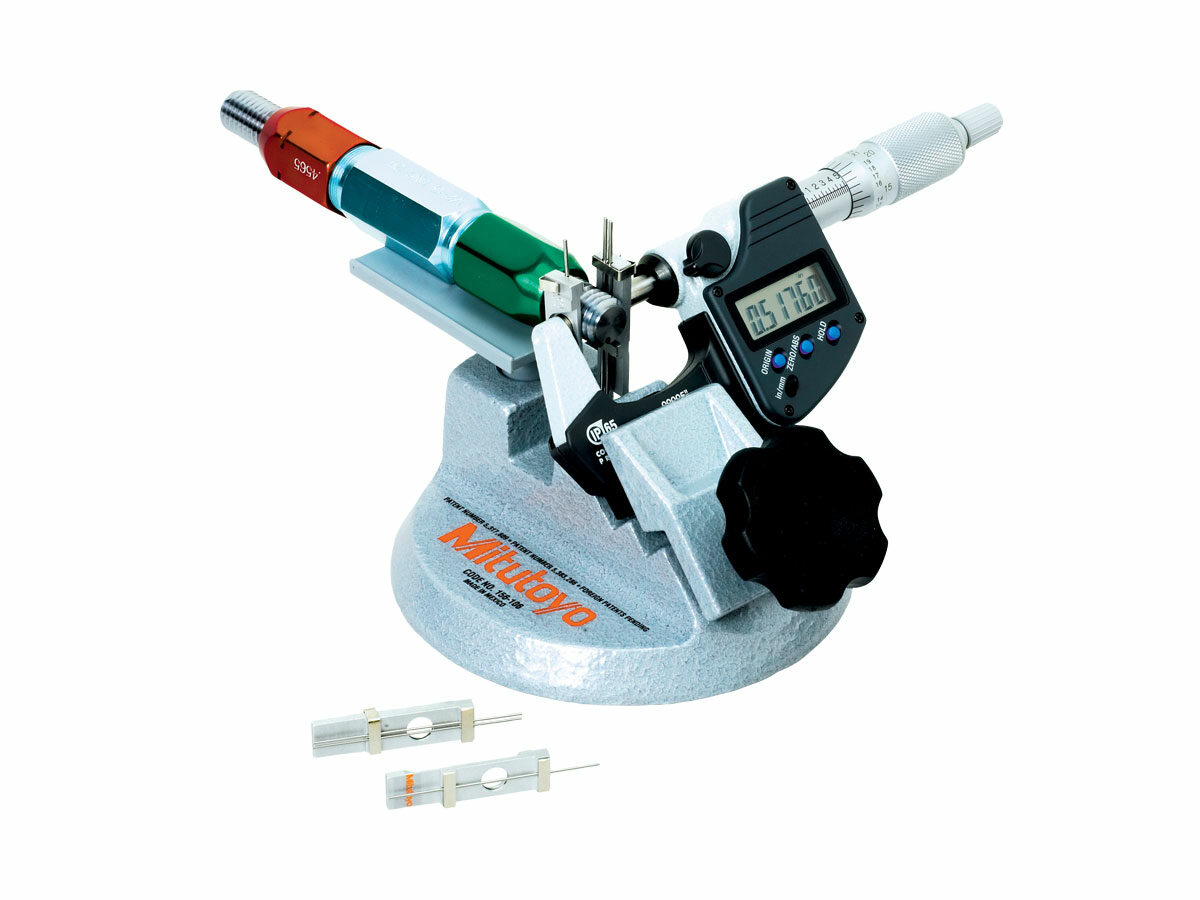

The Mitutoyo 3-wire thread measuring system features hardened, precision lapped wires for accurate results and longer wire lifespan. This measuring system reduces measurement time to a fraction of the time normally taken using the traditional three-wire method.
- Available in Metric and Inch holders and wire sets
- Measuring set is placed onto the spindle and anvil of an outside micrometer
- Measuring wires are hardened and precision lapped
- Vertically adjustable platform supports and positions threaded parts, plug gages between anvil of micrometer
- Includes Certificate of Accuracy
- Traceable to NIST
| Order No.: | Product Image: | Threads per inch: | Thread Measuring Wire Diameter: | |
|---|
| 64AAA201 | — | 120 | 0.00481″ |
| 64AAA202 | — | 100 | 0.00577″ |
| 64AAA203 | — | 95 | 0.00601″ |
| 64AAA204 | — | 90 | 0.00642″ |
| 64AAA205 | — | 80 | 0.00722″ |
| 64AAA206 | — | 72 | 0.00802″ |
| 64AAA207 | — | 64 | 0.00902″ |
| 64AAA208 | — | 56 | 0.01031″ |
| 64AAA209 | — | 50 | 0.01550″ |
| 64AAA210 | — | 48 | 0.01203″ |
| 64AAA211 | — | 44 | 0.01312″ |
| 64AAA212 | — | 40 | 0.01443″ |
| 64AAA213 | — | 36 | 0.01604″ |
| 64AAA214 | — | 32 | 0.01804″ |
| 64AAA215 | — | 30 | 0.01925″ |
| 64AAA216 | — | 28 | 0.02062″ |
| 64AAA217 | — | 27 | 0.02138″ |
| 64AAA218 | — | 26 | 0.02221″ |
| 64AAA219 | — | 24 | 0.02406″ |
| 64AAA220 | — | 22 | 0.02624″ |
| 64AAA221 | — | 20 | 0.02887″ |
| 64AAA222 | — | 18 | 0.03208″ |
| 64AAA223 | — | 16 | 0.03608″ |
| 64AAA224 | — | 14 | 0.04124″ |
| 64AAA225 | — | 13 | 0.04441″ |
| 64AAA226 | — | 12 | 0.04811″ |
| 64AAA227 | — | 11.5 | 0.05020″ |
| 64AAA228 | — | 11 | 0.05249″ |
| 64AAA229 | — | 10 | 0.05774″ |
| 64AAA230 | — | 9 | 0.06415″ |
| 64AAA231 | — | 8 | 0.07217″ |
| 64AAA232 | — | 7.5 | 0.07698″ |
| 64AAA233 | — | 7 | 0.08248″ |
| 64AAA234 | — | 6 | 0.09623″ |
| 64AAA235 | — | 5.5 | 0.10497″ |
| 64AAA236 | — | 5 | 0.11547″ |
| 64AAA201 |
| 64AAA202 |
| 64AAA203 |
| 64AAA204 |
| 64AAA205 |
| 64AAA206 |
| 64AAA207 |
| 64AAA208 |
| 64AAA209 |
| 64AAA210 |
| 64AAA211 |
| 64AAA212 |
| 64AAA213 |
| 64AAA214 |
| 64AAA215 |
| 64AAA216 |
| 64AAA217 |
| 64AAA218 |
| 64AAA219 |
| 64AAA220 |
| 64AAA221 |
| 64AAA222 |
| 64AAA223 |
| 64AAA224 |
| 64AAA225 |
| 64AAA226 |
| 64AAA227 |
| 64AAA228 |
| 64AAA229 |
| 64AAA230 |
| 64AAA231 |
| 64AAA232 |
| 64AAA233 |
| 64AAA234 |
| 64AAA235 |
| 64AAA236 |
Технические характеристики
| Units: | Inch |
|---|
| Diameter accuracy: | ±0.00001′ |
|---|
| Roundness accuracy: | ±0.00001′ |
|---|
| Optional Accessories: | 156-106 |
|---|
| Notes: | — For 6.35mm Spindle Diameter holder only, add “H” suffix to Order No. (i.e. 64AAA201H), For 8mm Spindle Diameter holder only, add “H8” suffix to Order No. (i.e. 64AAA201H8) |
|---|
