The Mitutoyo 3-axis retrofit milling package utilizes a KA-200 digital readout with slim linear scales in many different X-, Y- and Z-axis travel lengths on manual milling machines. The KA-200 features ABSOLUTE and incremental modes with nine presets each. Using electromagnetic induction, the included ABSOLUTE AT715 linear scale is not affected by contamination making it ideal for shop floors.
- Many different sizes of Quill and Knee 3-axis mill packages are available

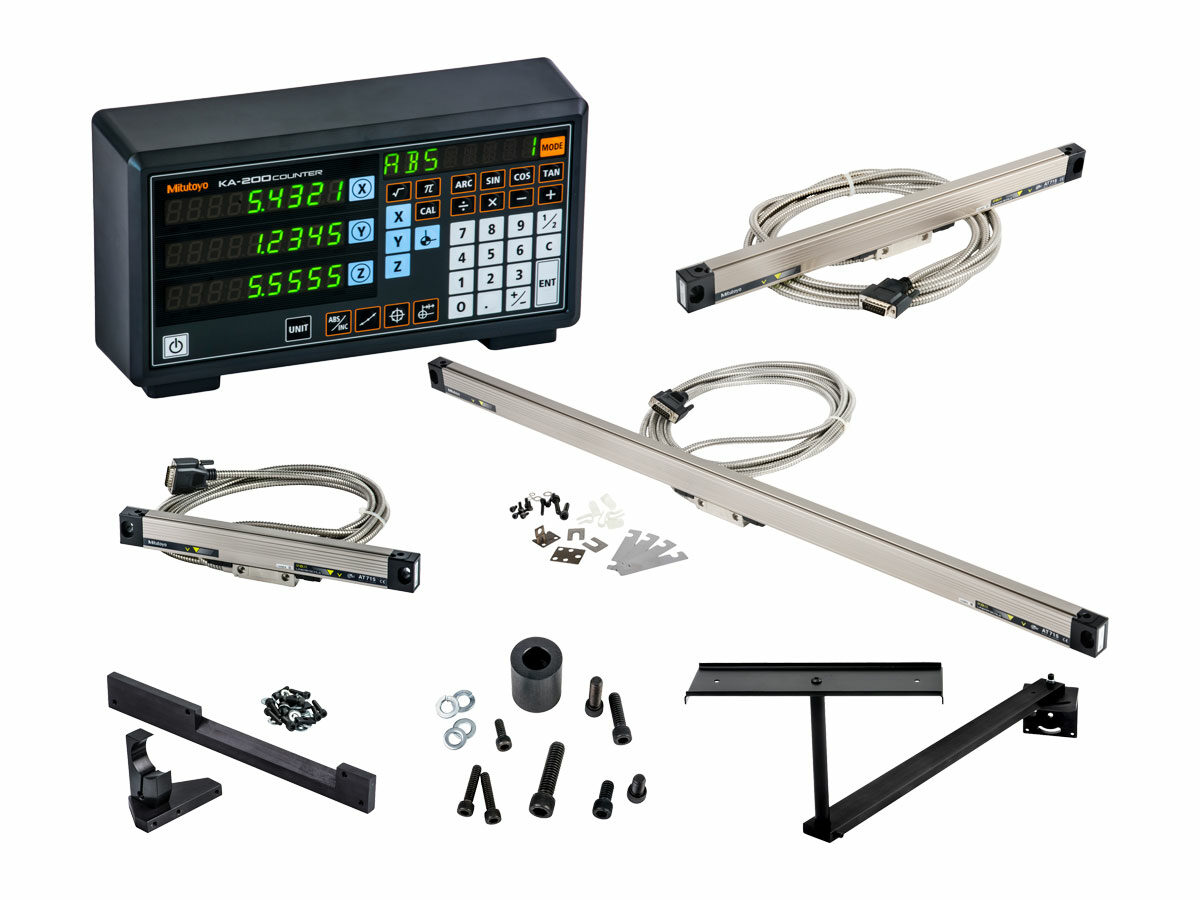

- Includes KA-200 digital counter, AT715 electro-magnetic slim ABSOLUTE linear scales, linear scale brackets and display arm kit
- KA-200 counter can output RS-232C data to a PC, printer or PLC using an optional code out unit (#09AET993)
- The ABSOLUTE scale on the AT715 linear scale eliminates the need for origin resetting for faster, more accurate displacement measurements
- IP67 rating (AT715 linear scale) protects linear scale from water and oil contamination
- Comes with 5 year warranty
| Order No.: | Product Image: | Dimensions: | X-Axis Travel: | Y-Axis Travel: | |
|---|
| 64PKA065A | — | 12x30x6″ | 12″ | 30″ |
| 64PKA066A | — | 12x36x6″ | 12″ | 36″ |
| 64PKA067A | — | 46x36x6″ | 46″ | 36″ |
| 64PKA065A |
| 64PKA066A |
| 64PKA067A |
Технические характеристики
| Type: | Mill Package |
|---|
| Z-Axis Travel: | 6′ |
|---|
| X-Axis Type: | AT715 |
|---|
| Y-Axis Type: | AT715 |
|---|
