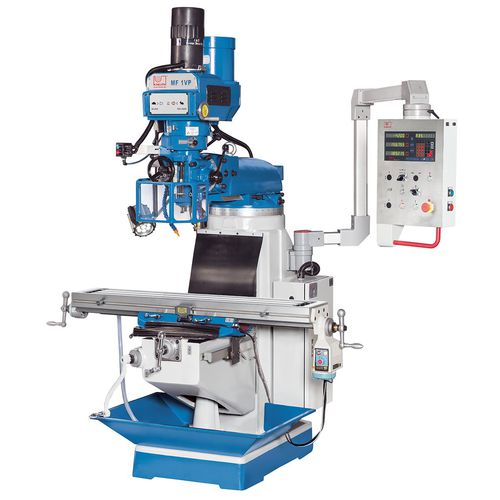

The design of the multi-purpose milling machine series MF1 is the best-selling in the world and indispensable in many workshops. The X-axis is equipped with an infinitely variable feed and the swiveling vertical milling head with belt drive offers a wide speed range for machining steel to non-ferrous metals. The automatic quill feed and pneumatic tool clamping are also part of the standard accessories, as is the mounted position indicator. The entire series is ideal for repair workshops as well as training and production departments. • Swiveling, tiltable cutter head with quill feed • Pneumatic tool tightening system • Milling head swivels in 3 axes • Extensive standard equipment • Speed is changed by shifting the 2-step drive motor transmission, or by selecting the desired gear ratio at the drive belt (4 speeds per gear) • Automatic table feed, type TV 1000 on X and Y, can easily be retrofitted • Head swivels on 3 axes: swivel r + l ± 90°, tilt forward + reverse ± 45°, rotation on the column ± 45° • Dovetail guides, hardened, adjustable • 3 automatic drill feeds • Manual coarse feed for quill, with change-over for manual fine feed • Quill with automatic micrometer depth stop • Spindle mount ISO 30 • Reversing switch for forward reverse rotation • Manual spindle brakes • Pneumatic tool clamping • 3-axis position indicator, coolant system, and LED work lamp (included in standard equipment)
Технические характеристики
CharacteristicsNumber of axes3-axisSpindle orientationverticalAssociated functiondrillingOther characteristicsautomatic, with moving tableX travel
670 mm (26 in)
Y travel
290 mm (11 in)
Z travel
370 mm (15 in)
Power
2,200 W (2.99 hp)
