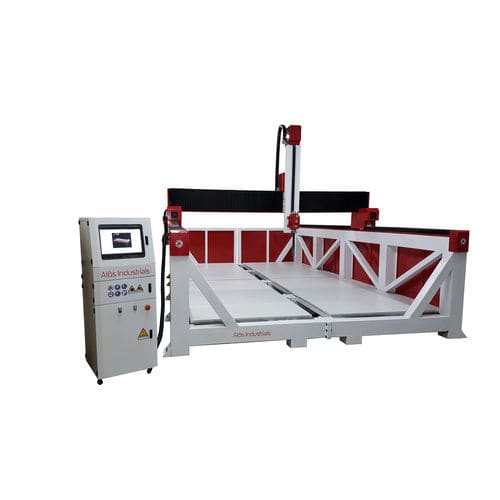

It is a three-axis milling machine, XYZ. The machine is specifically designed for the machining of semi-hard materials such as expanded polystyrene. — High production, minimum maintenance. Measurements: X5000 Y3000 Z1200 Motor: With hollow shaft for suction 4.4Kw Table: Adhesive fixing Numerical control by PC Motors: Servo in all axes speed 15m/min
Технические характеристики
CharacteristicsNumber of axes3-axisSpindle orientationverticalStructuremobile gantryMachined materialfor expanded polystyreneOther characteristicshigh-productivityX travel
5,000 mm (197 in)
Y travel
3,000 mm (118 in)
Z travel
1,200 mm (47 in)
Rotational speed
18,000 rpm (113,097 rad.min-1)
Power
4.4 kW (5.98 hp)
Weight
5,000 kg (11,023.11 lb)
Overall width
3,000 mm (118.1 in)
Overall height
1,200 mm (47.2 in)
