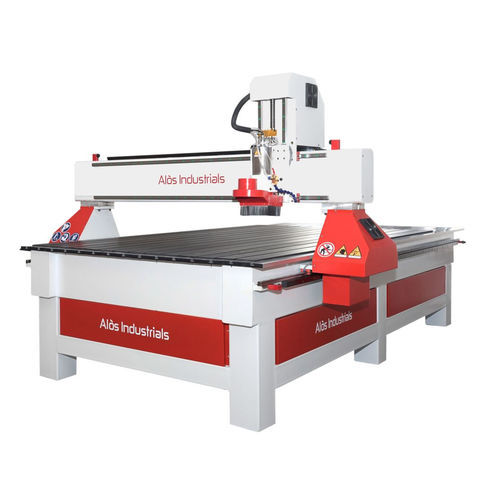

It is a three-axis milling machine, XYZ. The machine is specifically designed for machining semi-hard materials such as expanded polystyrene, wood, plastics, aluminum, etc. Working measurements X2500 Y1300 Z200mm 3.2Kw (4.5Cv) engine Speeds 15m/min. Transmission XY Gear/Rack Z ball screw. Slotted table for fixing the pieces by means of flanges. It is delivered with NC control by computer (included).
Технические характеристики
CharacteristicsNumber of axes3-axisSpindle orientationverticalMachined materialfor aluminum, for wood, for expanded polystyrene, for thermoplasticsApplicationsfor the plastics industry, for the wood industryOther characteristicshigh-precision, high-productivityX travel
2,500 mm (98 in)
Y travel
1,300 mm (51 in)
Z travel
200 mm (8 in)
Power
3.2 kW (4.35 hp)
Weight
800 kg (1,763.7 lb)
Overall length
3,100 mm (122 in)
Overall width
2,100 mm (82.7 in)
Overall height
1,600 mm (63 in)
