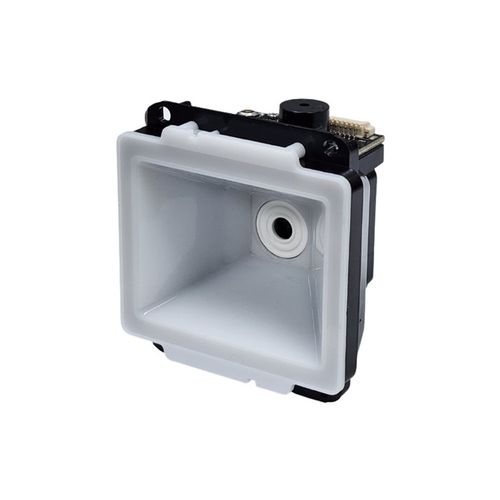

• CMOS 640 x 480 • Dimensions: 64.4mm (L) x 61mm (W) x 38.1mm (H) • Support 4 mil resolution • Contrast: 30% reflectance difference • FX-60 area imager module is engineered to decode most of 1D, PDF and 2D codes. It’s excellent for reading smart phone QR codes and barcodes and also perfect performance for reading poorly printed codes on paper. It provides wide range of applications: such as self-payment, self-order systems, self-takeout or registration. The wide reading area enhances reading performance. General Interfaces: USB-KB / USB-COM / RS-232 Barcodes Supported (1D): All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32 / Italian Pharmacode, Code 128 CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBAR 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C Barcodes Supported (2D): PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR Code, Aztec, Maxicode Optical Light Source: White LED Optical sensor: 640(H) x 480 (V) pixels Resolution: 4 mil (Code 39), 6.67mil (DataMatrix) Indicator: Beeper Frame rate: 120 FPS Field of View: Horizontal: 75° , Vertical 68° PCS: 30% Interfaces: USB-KB / USB-COM / RS-232 Electrical Voltage: DC 5V Scanning Currents: 180 mA Standby Currents: 160 mA Environment Operating Temperature: -20℃ to 55℃ (-4℉ to 131℉) Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉) Operating Humidity: 10% ~95% RH (non-condensing) Storage Humidity: 10% ~95% RH (non-condensing) Light Levels: 100,000 lux Physical Weight: 98g w/cable Dimensions: 64.4mm (L) x 61mm (W) x 38.1mm (H) Housing Material: ABS plastic Cable: Length: 5ft (150cm) / USB Type: A, RS-232 Warranty: 1 year
Технические характеристики
CharacteristicsPortabilityfixedType1D, 2DApplicationsfor warehouse, for retailers, POS, for factoriesOther characteristicshands-free, OEM
