Additional Features:
- Combines functions of DMM, switch system, and datalogger
- True 6½-digit (22-bit) resolution
- Choice of 12 switch/control plug-in modules
- Up to 200 differential input channels (with 300V isolation) for measurement and control
- Convenient front panel inputs
- Free LabVIEW™, LabWindows/CVI, Visual Basic, C/C++, and TestPoint™ drivers (IVI style)
- GPIB and RS-232 communications capabilities
- Free ExceLINX™-1A datalogging software
Applications:
Precision low ohms multichannel measurements on materials, devices, components, and systems, including:
- Connectors
- Squibs
- Sensors
- Semiconductors
- Fuses
- Relays
- Harnesses
- Resistive devices

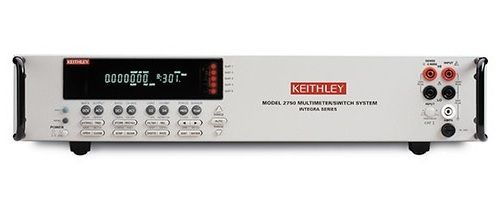

The Keithley 2750’s flexible, five-slot mainframe combines a 61⁄2-digit, 14-function DMM with support for up to 200 channels of two-pole switching and multi-channel analog/digital I/O control. This tight integration simplifies system design while it minimizes rack space requirements. It also allows the Model 2750 to scan and measure more than 200 channels per second, ensuring shorter test times and greater productivity than competitive approaches. Currently, the Model 2750 supports twelve optional plug-in switch/control modules and additional modules are already in development. Up to five modules can be mixed or matched to provide the combination of switching and control capabilities today’s ATE and data acquisition systems demand. For the flexibility needed for tomorrow’s applications, the Model 2750’s on-board flash memory can be reprogrammed to support new Keithley modules as they are introduced.
Технические характеристики
| Manufacturer | Keithley |
|---|---|
| Condition | New |
