Additional Features:
- 100V, 7A, 100W
- One tightly coupled instrument that combines capabilities from analyzers, curve tracers, and I-V systems at a fraction of their cost
- Five-inch, high resolution capacitive touchscreen GUI
- 0.012% basic measure accuracy with 6½-digit resolution
- Source and sink (4-quadrant) operation
- Four “Quickset” modes for fast setup and measurements
- Context-sensitive help function
- Front panel input banana jacks, rear panel input mass termination screw connections
- 2460 SCPI and TSP® scripting programming modes
- Front-panel USB 2.0 memory I/O port for transferring data, test scripts, or test configurations

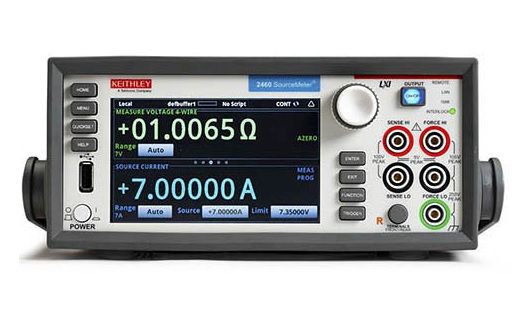

The Keithley 2460 High Current SourceMeter Source Measure Unit (SMU) Instrument brings advanced Touch, Test, Invent technology right to your fingertips. It combines an innovative graphical user interface (GUI) with capacitive touchscreen technology to make testing intuitive and minimize the learning curve to help engineers and scientists learn faster, work smarter, and invent easier.
Технические характеристики
| Manufacturer | Keithley |
|---|---|
| Condition | New |
| Volts | 100 V |
| Amps | 7 A |
| Power | 100 W |
