Features:
- DC to 1MHz
- Inputs up to 10A and 1000V
- 0.2% Accuracy
- Isolated inputs
- Low Power Factor accuracy
- Harmonic analysis
- Total Harmonic Distortion
- Low current ranges
- USB and IEEE interface
- Graphical display

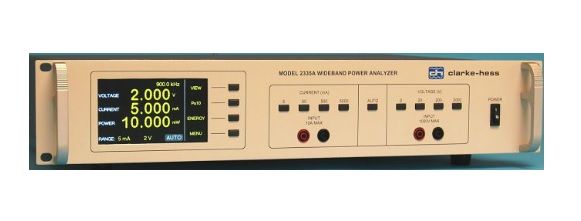

The Model 2335A Wideband Power Analyzer is a precision, high accuracy, high frequency auto-ranging power analyzer which measures and displays true rms Voltage, true rms Current, and true mean Power over a frequency range from dc to more than 1MHz. Full scale Current and Voltage inputs are typically measured within ±0.1% of the amplitude reading to at least 500kHz. The corresponding Power is typically measured to within ±0.1% of the input Volt-Amperes to 250kHz and to within ±0.2% of the input Volt-Amperes to 500kHz for loads having any Power Factor.
Технические характеристики
| Manufacturer | Clarke Hess |
|---|---|
| Condition | Used |
