Features:
- Cost effective solution for three phase AC power requirements
- Ideal for commercial, military and avionics applications with its 16 Hz to 5000 Hz frequency range
- Compact size for convenient usage
- AC power: 675VA (max per phase)
- Peak current low/high: 15A/7.5A
- Voltage low/high: 0-135V/0-270V
- Power factor: 0.7
- High peak current capability for wide variety of non-linear loads
- Optional measurements include TRMS Volt, TRMS current, peak current, crest factor, real power and power factor
- Low 5.25 inch height saves valuable rack space when stacked
Specifications:
- 2 kVA
- 300 V
- 28 A
- 5 kHz

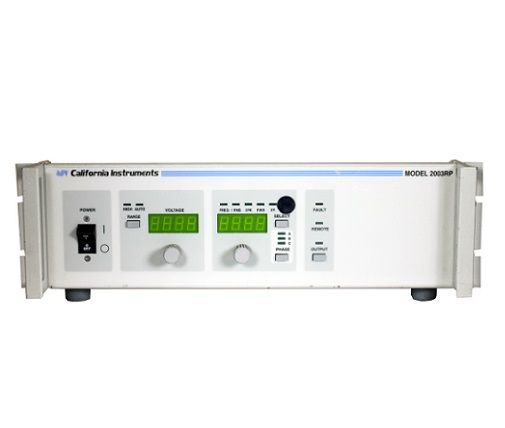

Use the California Instruments 2003RP three phase, AC power sources for general purpose AC power applications requiring variable voltage and frequency at power levels up to 2000 VA. The wide frequency range of 16 Hz to 5000 Hz, universal input and convenient source of variable utility power, makes the 2003RP ideal for testing domestic, commercial, defense and avionics equipment and applications.
Технические характеристики
| Manufacturer | California Instruments |
|---|---|
| Condition | Used |
| Amps | 28 A |
| Frequency | 5 kHz |
| Phase | 1 |
| Power (VA) | 2 kVA |
| Volts | 300 V |
