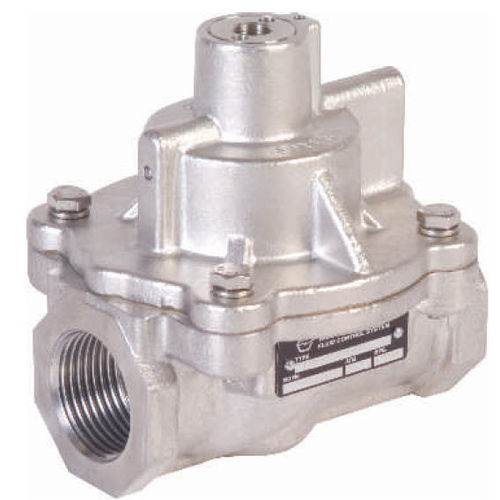

The 23101 series two port-operated valve unit is designed with simple fitting to allow mounting styles in any position possible. It integrates a bubble tight shut-off gear. This system established good resistance to vibration impact up to 9 g. Speed frequency is approximated to 300 cycles per minute. It is optimized with extended life span of 10 million cycles. * Mounting – Any position. * Life : above 10 million cycles. * Body : Anodized Aluminium, Brass, SS316. * Seal : NBR, Viton, EPDM, PTFE.
Технические характеристики
CharacteristicsPorts/positions2-wayDN
12 mm, 20 mm, 25 mm, 40 mm, 50 mm (0.472 in)
Temperature
Max.: 80 °C (176 °F)
Min.: -20 °C (-4 °F)
Pressure
40 bar (580.2 psi)
