The Mitutoyo 2-axis retrofit milling package utilizes a KA-200 digital readout with slim linear scales in several different X- and Y-axis travel lengths on manual milling machines. The KA-200 features ABSOLUTE and incremental modes with nine presets each. Using electromagnetic induction, the included ABSOLUTE AT715 linear scale is not affected by contamination making it ideal for shop floors.

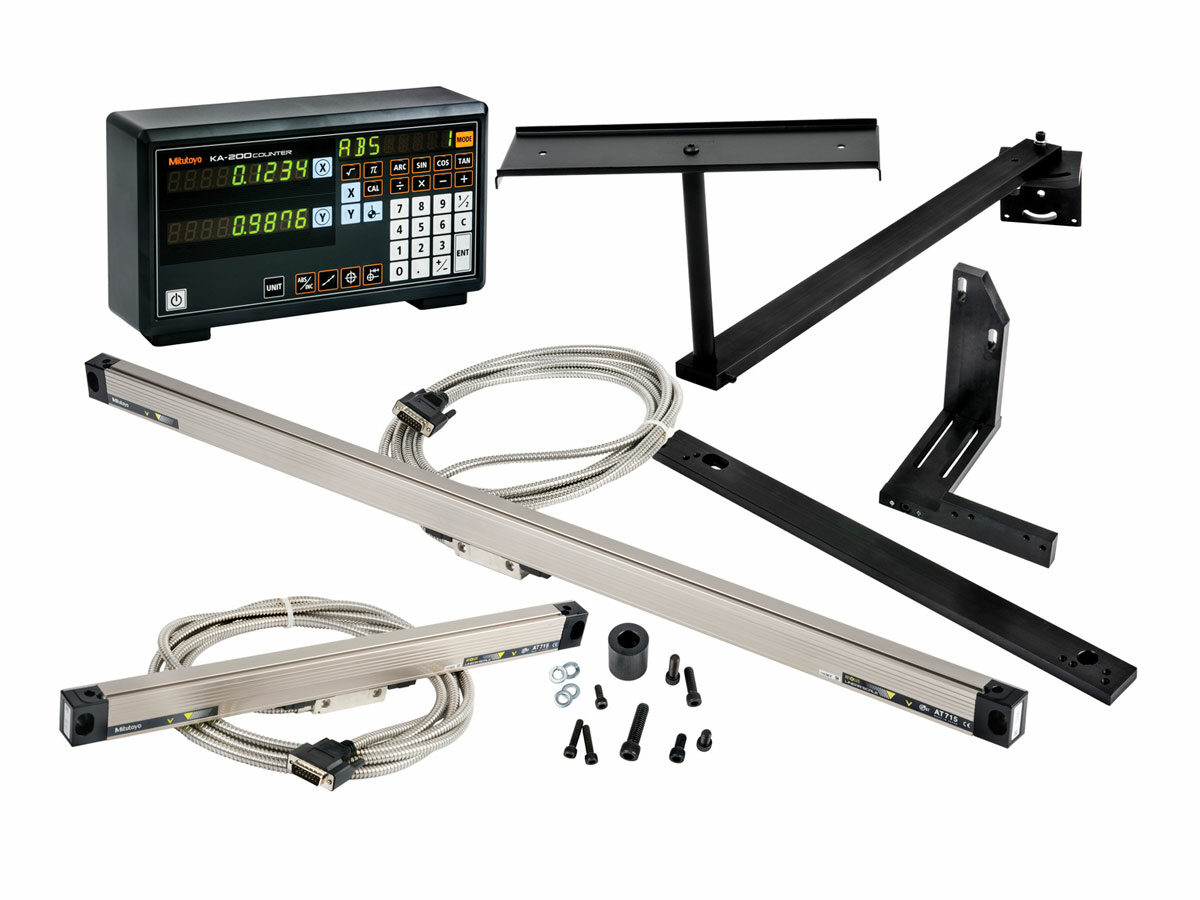

- Includes KA-200 digital counter, AT715 electro-magnetic slim ABSOLUTE linear scales, linear scale brackets and display arm kit
- KA-200 counter can output RS-232C data to a PC, printer or PLC using an optional code out unit (#09AET993)
- The ABSOLUTE scale on the AT715 linear scale eliminates the need for origin resetting for faster, more accurate displacement measurements
- Packages are available in 6 different X-axis travel lengths and 4 Y-axis travel lengths
- IP67 rating (AT715 linear scale) protects linear scale from water and oil contamination
- Comes with 5 year warranty
| Order No.: | Product Image: | Dimensions: | X-Axis Travel: | Y-Axis Travel: | |
|---|
| 64PKA058A | — | 12×30″ | 30″ | 12″ |
| 64PKA059A | — | 12×36″ | 36″ | 12″ |
| 64PKA060A | — | 14×30″ | 30″ | 14″ |
| 64PKA061A | — | 14×40″ | 40″ | 14″ |
| 64PKA062A | — | 16×36″ | 36″ | 16″ |
| 64PKA063A | — | 16×40″ | 40″ | 16″ |
| 64PKA064A | — | 18×40″ | 40″ | 18″ |
| 64PKA058A |
| 64PKA059A |
| 64PKA060A |
| 64PKA061A |
| 64PKA062A |
| 64PKA063A |
| 64PKA064A |
Технические характеристики
| Type: | DRO Mill Package |
|---|
| X-Axis Type: | AT715 |
|---|
| Y-Axis Type: | AT715 |
|---|
