2-осевой пакет системы токарного станка

The Mitutoyo 2-axis retrofit lathe package utilizes a KA-200 digital readout with slim linear scales in many different X- and Z-axis travel lengths on manual milling machines. The KA-200 features ABSOLUTE and incremental modes with nine presets each. The Z-axis uses either an AT715 electromagnetic linear scale or AT103 glass linear scale, depending on the package length. The AT116 slim spar type glass linear scale handles the X-axis displacement.

• Available with Z-axis travel of up to 120 in.
• Many different sizes of Quill and Knee 3-axis mill packages are available

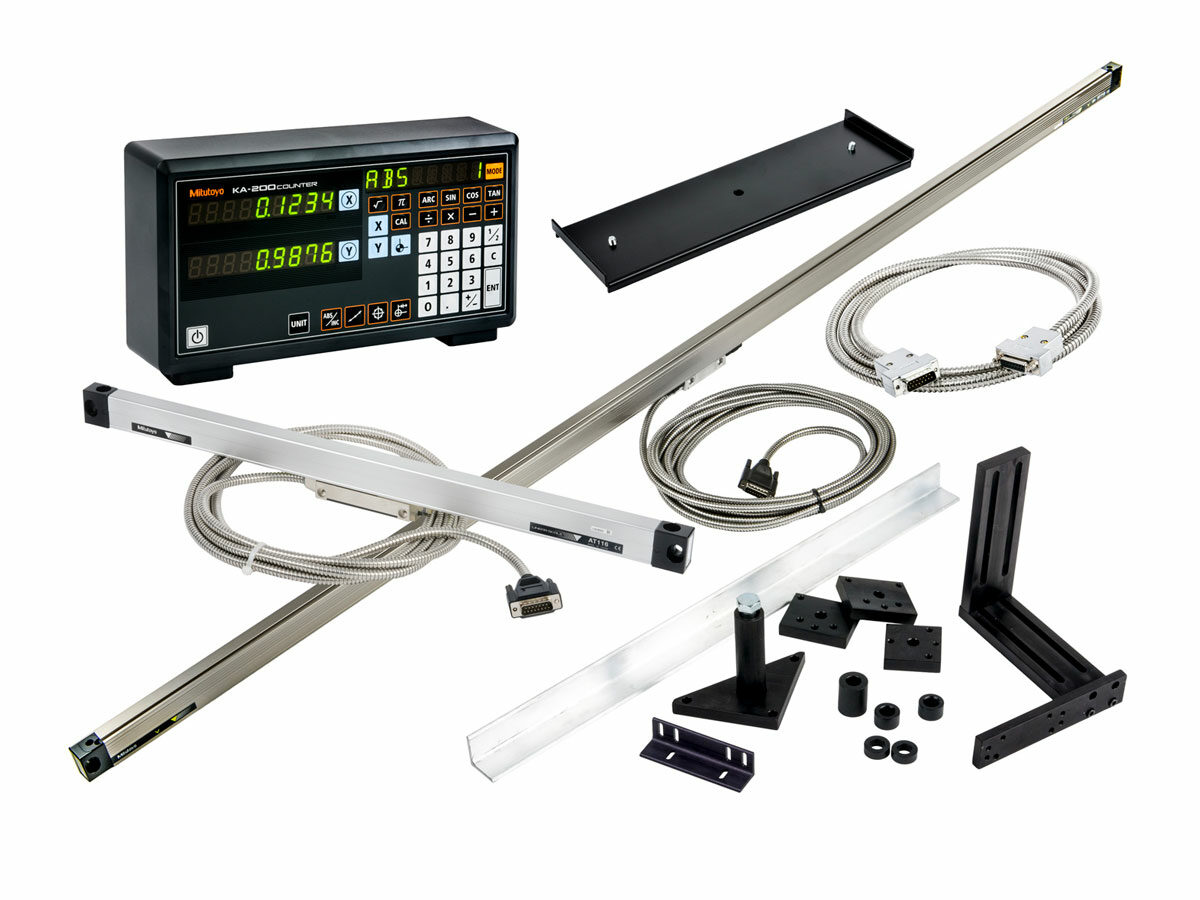

• Includes KA-200 digital counter, AT715/AT103 Z-axis scale, AT116 X-axis scale, bracket kit, counter stand, counter tray and extension cable in kits with 60-in. X-axis and longer
• KA-200 counter can output RS-232C data to a PC, printer or PLC using an optional code out unit (#09AET993)
• The ABSOLUTE scale on the AT715 linear scale eliminates the need for origin resetting for faster, more accurate displacement measurements
• IP67 rating on AT715 linear scale fully protects linear scale from water and oil contamination
• IP53 rating on AT103 linear scale better protects against dust and water
• Comes with 5 year warranty
