Additional Features:
- 10kV AC withstand voltage test
- 0.1MΩ~50GΩ insulation impedance test
- BDV (BreakDown Voltage test)
- HVCC (High Voltage Contact Check)
- HFCC (High Frequency Contact Check)
- OSC (Open Short Check)
- GFI (Ground Fault Interrupt)human protection circuit
- Fast charge/discharge function
- Programmable output & test limit
- Standard RS232 interface
- Optional GPIB & HANDLER interface
- Key lock function
- CE Mark
- 2 Year Factory Warranty

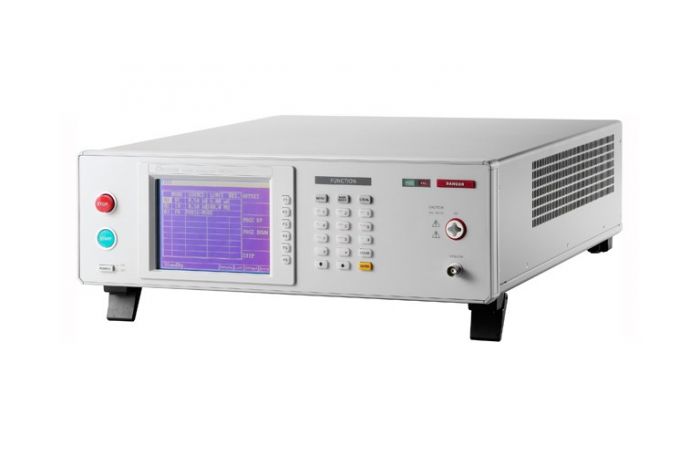

The Chroma Guardian 19056 HiPot Analyzer is specially designed for testing and analyzing ultra-high withstand voltage. In addition to the patented OSC (Open Short Check), High Voltage Contact Check is added to test the components with high insulation capability when high voltage outputs to improve the testing reliability and efficiency. The Guardian 19056 with GFI (Ground Fault Interrupt) is designed to protect operator»s safety when abnormal ground current (A2-A1) occurs.
The HiPot Analyzer provides high withstand voltage testing and analysis for optical couplers, HV relays, HV switches and PV modules, which have better insulation capability.
Технические характеристики
| Manufacturer | Chroma |
|---|---|
| Condition | New |
