Additional Features:
- Standard Banana Jacks, Solderless and Stackable
- Color: Red
- Designed to fit on the end of any 18 AWG to 22 AWG wire
- Cross-hole wire entry fits wires up to 0.12 inches (3 mm) diameter
- Available with tarnish-resistant nickel plating for very low contact resistance
- Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver for quick installation
- Fits standard panel and binding post banana jacks 0.161 inches to 0.166 inches (4 mm to 4.2 mm) diameter
Materials:
- Banana Jack: Beryllium Copper, Gold Plated
- Banana Plug: Body – Brass, Nickel Plated
- Spring – Beryllium Copper, Nickel Plated
- Insulation: ABS (Model 4899 Polyphenylene Sulfide)
- Set Screw: Steel, Zinc Plated, 8-32 Single Slot
Materials:
- Banana Jack: Beryllium Copper, Gold Plated
- Banana Plug: Body – Brass, Nickel Plated
- Spring – Beryllium Copper, Nickel Plated
- Insulation: ABS
- Set Screw: Steel, Zinc Plated, 8-32 Single Slot

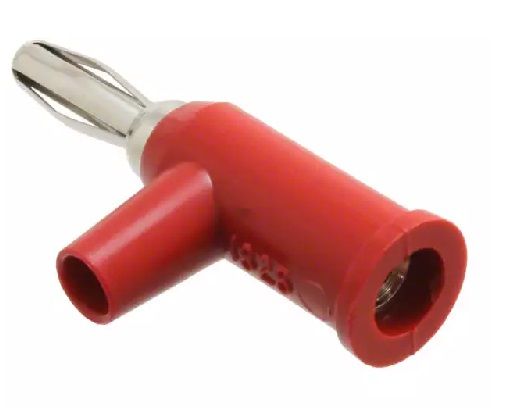

The Pomona 1825-2 banana plugs are used to carry DC and low-frequency signals. Power supplies to multimeters typically use banana plugs. Standard banana plugs may only be used for less than 33 V, since they have exposed metal parts. Engineers and technicians often use banana plugs and jacks on custom fixtures, early prototypes, or informal “one-off” projects.
Технические характеристики
| Manufacturer | Pomona |
|---|---|
| Condition | New |
| Color | Red |
