Additional Features:
- One variable 0 to 30 VDC, 0 to 3 A variable section
- One 12 VDC fixed section
- One 5 VDC fixed section
Specifications:
Constant Voltage Operation
- Line Regulation: ≤0.05% + 10mV Main, ≤1% fixed output
- Load Regulation: ≤0.05% + 10mV, ≤1% fixed output
- Recovery Time 100μs
- Ripple & Noise: ≤5 mVrms
- Temperature Coefficient: ≤300 ppm°C
Constant Current Operation
- Adjustable Current Range: 5% to 100% (Main)
- Line Regulation: ≤0.4% + 10 mA
- Load Regulation: ≤0.4% + 10 mA
- Ripple & Noise: ≤10 mA rms
Metering
- Display: 3-digit LCD
- Voltmeter Range: 0 to 12 VDC 0 to 5 VDC
- Voltmeter Resolution: 0.1 V
- Voltmeter Accuracy: ± (1% reading + 2 digit)
- Ampmeter Resolution 0.01 A
- Ammeter Accuracy: ± (1% reading + 2 digit)
General
- Overload Protection: Current limiting, Reverse polarity, overvoltage, Short circuit
- Power Requirements: 115/230 VAC, 50/60 Hz
- Power Consumption: 165 W
- Operating Temperature: 0 to 40°C ≤75% R.H.
- Storage Temperature: -15° to 70°C ≤85% R.H.
- Dimensions (H x W x D): 4.9” x 8.5” x 9.5′, (124 x 216 x 242 mm)
- Included Accessories: Instruction Manual and spare fuse
- One-Year Warranty

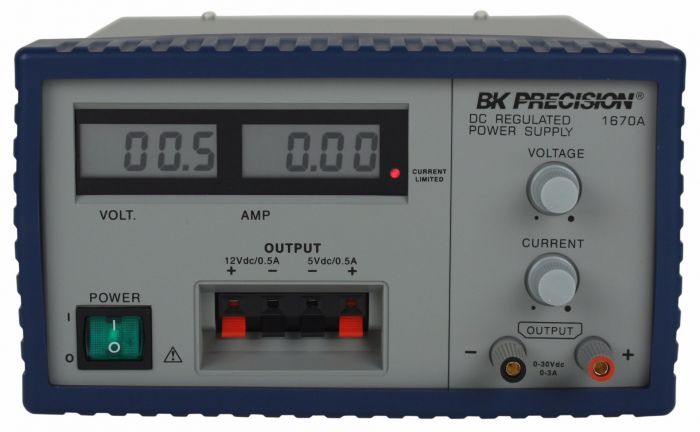

The BK Precision 1670A Triple-Output 30 VDC, 3A Digital Display Power Supply is ideal for general electronic servicing, school electronics labs, and powering up hobbyist’s projects.
Технические характеристики
| Manufacturer | BK Precision |
|---|---|
| Condition | New |
| Current | 3 A |
| Voltage | 30 V |
| Power | 200 W |
