Features:
- DUT Dimensions: (minimum applicable)0.6mm(L)x0.3mm(W)
- Measurement Instrument: 4192A, 4294A, 4263B, 4268A, 4278A, 4279A, 4284A, 4285A, E4980A
- Frequency: DC to 3 MHz (up to 110MHz with OPEN/SHORT/LOAD Compensation)
- DC Bias: -40V to +40V
- Operating Temperature: 0 to 55degC
- Terminal Connection: BNC, 4 terminal-pair
- Dimensions(approx.): 120(W) x 50(H) x 70(D)mm
- SMD Test Fixture Selection Table

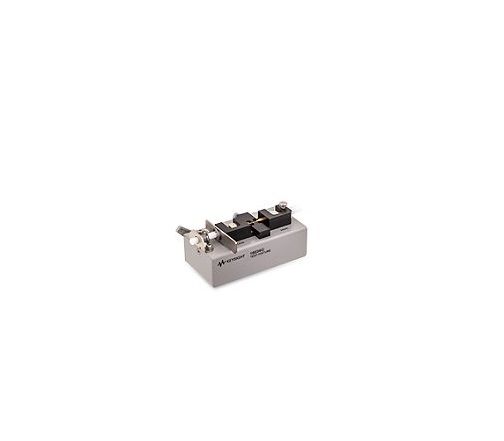

The 16034G is designed for impedance evaluations of SMD. The minimum SMD size that this fixture is adapted to evaluate is 0.6(L) x 0.3(W)[mm].
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
