Features:

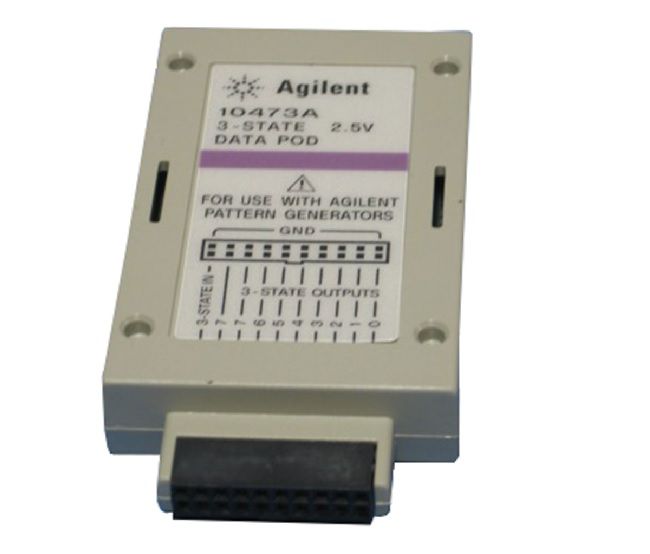

- 3-State 2.5 Volt Pattern Generator Data Pod
- Maximum clock: 300 MHz
- Skew: Typical less than 1.5 ns, worst case 2.5 ns
- 3-state enable: negative true, no connect=enabled
- Output type: 74AVC16244
Data Pod Configuration
- Logic level support: 3-state 2.5 V
- Recommended lead set: Keysight 10498A
- Order at least one data pod for every 8 output channels
- Design in a dedicated header for pod connection or order one 8-channel lead set for each pod
The 3-State 2.5V data pod supports Keysight Technologies 16720A and 1670G-004 pattern generators. Each pattern generator requires at least one clock pod, up to 4 data pods, and lead sets for each clock and data pod. For each 10473A data pod that you will be using, you will need one (1) 10498A lead set.
Технические характеристики
| Manufacturer | Agilent, HP, Keysight |
|---|---|
| Condition | Used |
