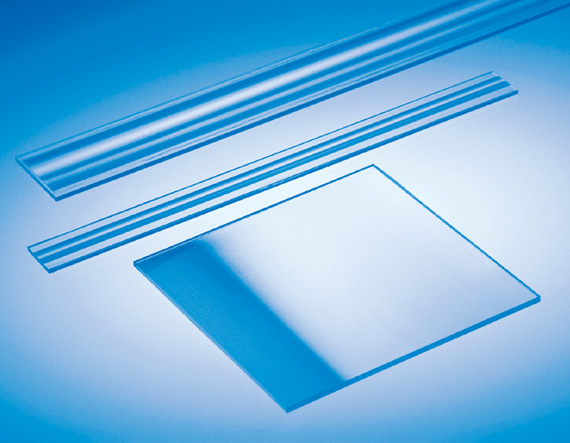

0,75 'x 5,95', 0,5' FL, цилиндрическая линза Френеля

Описание семейства продуктов

• Свернутая версия стандартного цилиндрического объектива
• Идеально подходит для фокусировки в одном направлении
• Доступны различные размеры

Технические характеристики

Effective Focal Length EFL (mm): 12.70 Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More Acrylic Coating: Uncoated Type: Fresnel Lens Wavelength Range (nm): 400 — 1100 Center Thickness CT (inches): 0.06 Dimensional Tolerance (inches): &plusmn,0.05 Dimensions (inches): 0.75 x 5.95 Dimensions (mm): 19.05 x 151.13 Effective Focal Length EFL (inches): 0.50 Effective Size (inches): 0.75 x 5.95 Groove Density (grooves/inch): 200.00 Index of Refraction nd: 1.49 Operating Temperature (C): 80 (Maximum) Transmission (%): 92 (from 400-1100nm) Thickness Tolerance (inches): &plusmn,0.020
Regulatory Compliance RoHS 2015: Compliant Reach 224: Compliant Certificate of Conformance: View
